Product Details

Overview

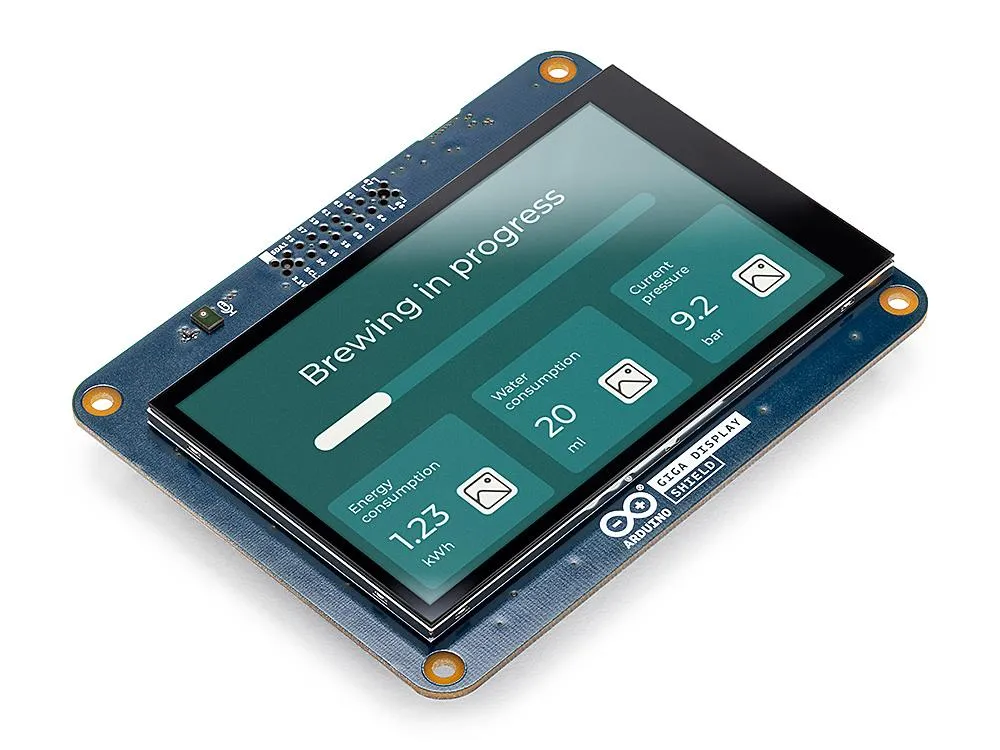

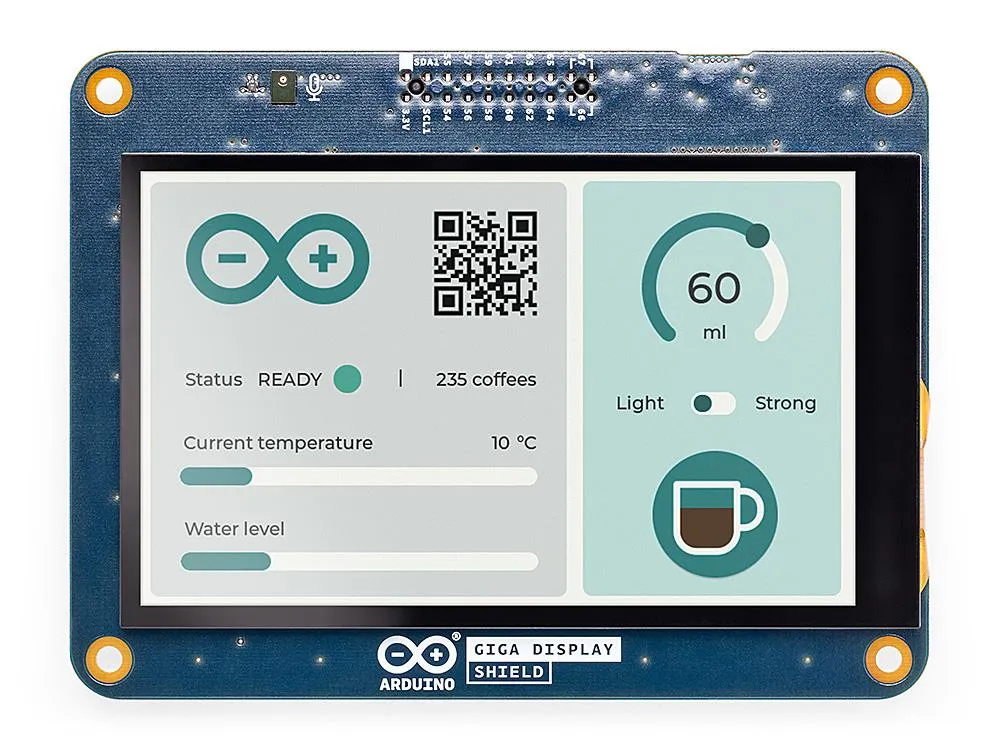

Introducing the GIGA Display Shield - an easy-to-install touch screen solution for developing graphical interfaces in projects. The newest pin header connector on GIGA R1 WiFi allows for effortless integration and greater functionality.

The GIGA Display Shield provides a digital microphone, 6-axis IMU, and Arducam connector to expand the use of the 54 available pins. This facilitates the construction of handheld devices or dashboards to control a project to its fullest potential.

Experience the convenience of building intuitive interfaces with ease, thanks to the GIGA Display Shield's user-friendly design and comprehensive features. Elevate your project's functionality and user experience with this cutting-edge solution.


Tech specs

Board Name Arduino® GIGA Display Shield
SKU ASX00039
Connectors Camera SOCKET 2ROW 20POS VERTICAL PASS THROUGH (Arducam compatible)
Display Video F32Q-1A7H1-11020
Display Touch F32Q-1A7H1-11008
Display KD040WVFID026-01-C025A
Size 3.97”
Resolution 480x800 RGB
Color 16.7M
Touch Mode Five points and Gestures
Interface I2C
Sensors IMU BMI270
Microphone MP34DT06JTR



Get Inspired

BLOG
The new Arduino GIGA Display Shield: Nice touch!
September 28, 2023

A few months ago, we promised you that the GIGA R1 WiFi would allow you to “think bigger and be more creative than ever”. Now, we are happy to announce you can step up your game even further, with the introduction of the Arduino GIGA Display Shield — an innovative touchscreen solution enabling all makers to effortlessly deploy fast and highly responsive graphic interfaces to their GIGA R1 WiFi projects. Featuring a 3.97” 480x800 RGB touchscreen, an MP34DT06JTR digital microphone, a Bosch BMI270 six-axis IMU, an Arducam® 20-pin camera connector, and an RGB LED, the GIGA Display Shield is perfect for easily creating handheld devices or dashboards you can control with a touch. It basically adds intuitive interfaces, high-level user experiences, and cutting-edge technology to your strengths in this game we call making. With the GIGA Display Shield, you can quickly add a cool UI to your hardware projects without extra wiring, have graphics adjust automatically according to device orientation or audio commands, or leverage computer vision as your solution’s input. If that’s not enough, GIGA R1 WiFi’s new set of top-facing connectors leaves the top header available for expansion, attaching other shields to boost your possibilities even more. Ready, player one? Find out more about how the GIGA Display Shield can give you a boost. We think you’ll have a lot of fun with this..

FAQs

Is this display multitouch-enabled?

Yes, the display supports up to 5 simultaneous touch points.

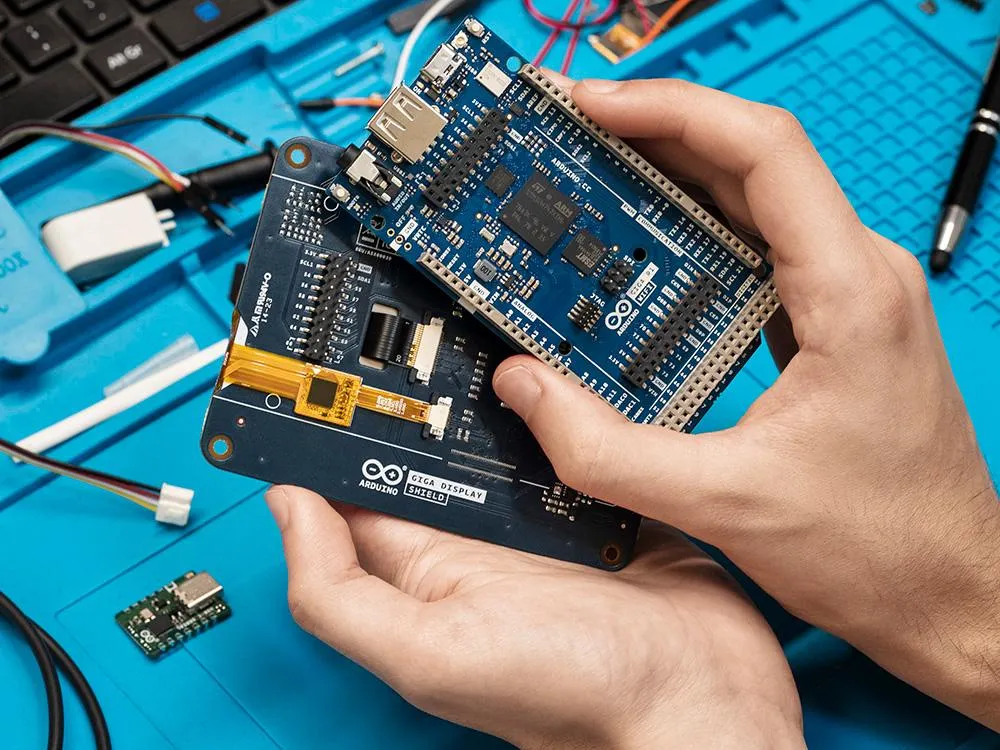

How do I connect the GIGA Display Shield to the GIGA R1 WiFi?

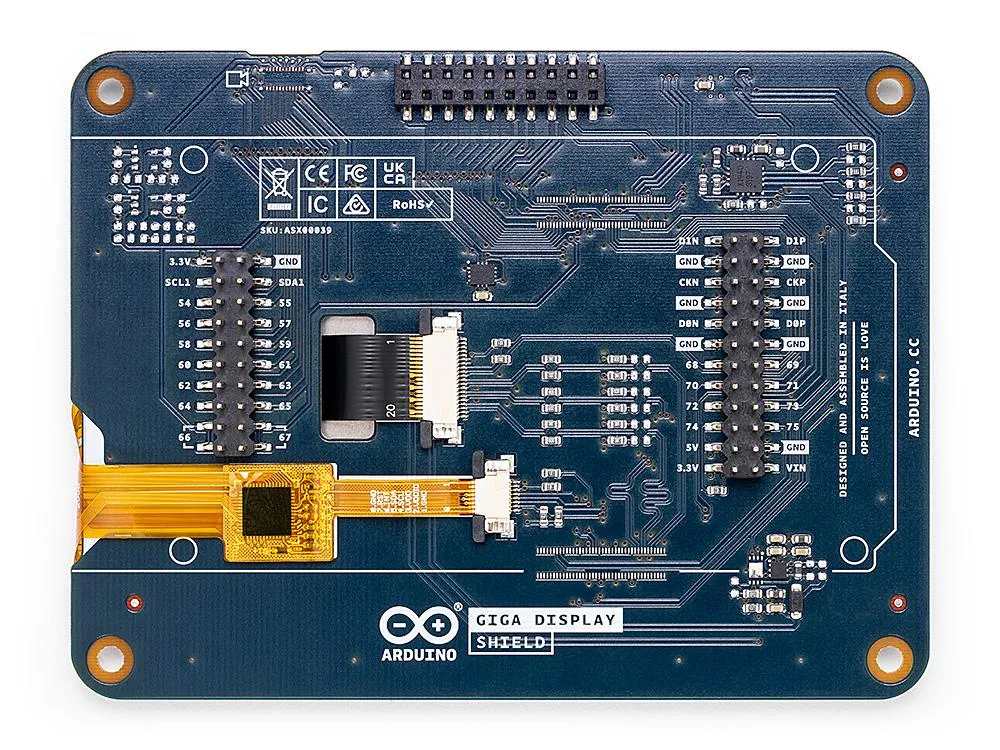

The GIGA Display Shield connects via the middle headers (J5 and J6) on the GIGA R1 WiFi. Attach the shield from the bottom, leaving the top side of the GIGA R1 WiFi available for additional shields.

Will I still have access to all pins when the display is attached?

Yes, you will retain access to all pins on the top side of the board (54 pins) even when the display is connected.

Does the shield require an external power supply?

No, the GIGA Display Shield does not require an external power supply. It is powered directly through the connection.

Which cameras are compatible with the shield?

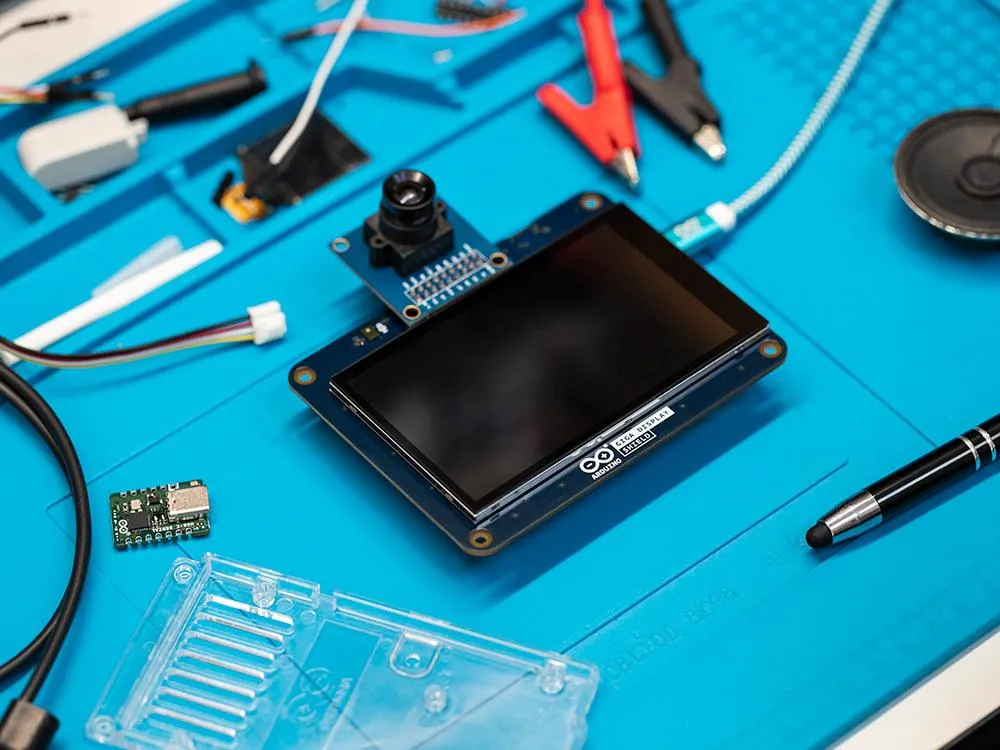

The GIGA Display Shield is fully compatible with 20-pin DVP cameras from Arducam, such as the . For more information, visit the .

Arduino GIGA Display Shield
  • Localstock
  • Overseasstock

$ 82.26

$ 63.28

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
