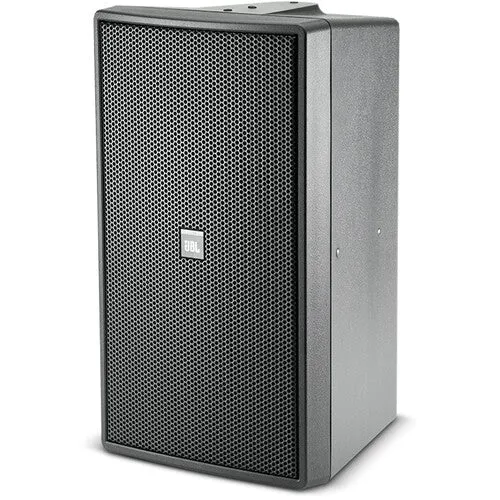

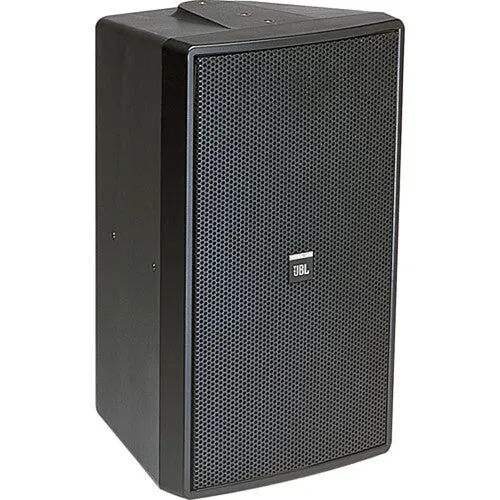

The blackJBL Control 29AV-1is a passive 8" shielded loudspeaker with a low-saturation transformer designed for voice amplification and foreground music reproduction in a variety of indoor and outdoor venues. The 110W transformer allows the Control 29AV-1 to be driven by 70V, 100V, or 8-Ohm power amplifiers (available separately). Each Control 29AV-1 is equipped with a durable 8" Kevlar-cone woofer and a 1" titanium-diaphragm compression driver, yielding a frequency response of 43 Hz to 15 kHz, and a continuous program power capacity of 300W. With a rotatable horn, the loudspeaker supports positioning for horizontal or vertical orientation.
The built-in crossover network ensures proper frequency distribution to the speaker components as well as smooth tone. SonicGuard circuitry protects against damage incurred through overloading without compromising sound quality. The screw-down terminal strip enables simple wiring, and utilizes nickel/zinc terminals for enhanced resistance to rust. The supplied InvisiBall mounting system and input panel cover contributes to ease of installation. Thanks to judicious magnetic shielding, the Control 29AV-1 may be placed as close as 9" to video monitors.
Features
Passive Design, Magnetic Shielding
8" Woofer, 1" HF Driver, Rotatable Horn
300W Continuous Program Power Capacity
For 70V/100V or 8-Ohm Power Amplifiers
Low-Saturation 110W Transformer
43 Hz to 15 kHz Frequency Response
SonicGuard Overload Protection
Screw-Down Terminal Strip
Includes InvisiBall Mounting System
Specifications
Number of Included Speakers
1
Speaker Configuration
Full-Range
Power Handling
For 100 Hours: 300 W Program 150 W RMS
Constant Voltage / Transformer Taps
100 V: 28 / 55 / 110 W or 8 Ohms Bypass 70 V: 14 / 28 / 55 / 110 W or 8 Ohms Bypass
Impedance
8 Ohms (Nominal) 6.4 Ohms (Minimum)
Shielded
Yes
Drivers
HF Driver
1" / 2.5 cm Titanium-Coated Compression Driver
LF Driver
8" / 20 cm Kevlar Woofer
LF Voice Coil
2" / 5 cm
Performance
Frequency Range
37 Hz to 18 kHz -10 dB
Frequency Response
43 Hz to 15 kHz ±3 dB
Maximum SPL
118 dB (Peak) 112 dB (Continuous)
Sensitivity
90 dB SPL
Coverage Angle
110° H x 85° V (Rotatable Horn)
Directivity
6.7 (Directivity/Q Factor) 8.3 dB (Directivity Index)
